IDI 1240 Monitor Suspension System

IDI monitor suspenseion systems provide unlimited flexibility in monitor positioning during radiological procedures. Single and dual CRT configurations are available. The system features a rotating counterbalanced arm with vertical travel and internal cable routing. A dual-axis mount with adjustable clutches expands viewing angle options. Motions are manually controlled.

The mobile suspension includes the 8'-10" Easymount clip system, an Image Diagnostics innovation that reduces installation time and effort by eliminating the need for measuring and drilling. The IDI1240 is highly versatile and easily integrated to existing systems.

Enhancements include: extended length ceiling rails, X-Y bridge systems, cable carrier kits, and a full-range of monitor mount sizes.

1240 Mobile Track-Mounted Suspension Systems

Package Includes:

• Anodized aluminum ceiling rails (8'-10'') with
  Easymount clip system
• Mobile gantry
• Counterbalanced arm with 36" sweep radius, 25" vertical travel, and ±180° rotation
• Dual-axis monitor mount with ±10° tilt;
  ±180° rotation

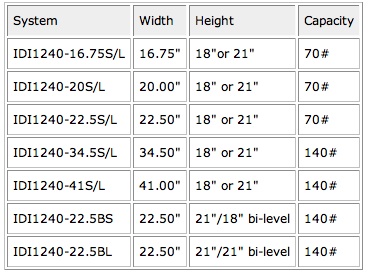

• Tray capacities: 16.75", 20", 22.5" wide x 18" or 21" high x 70#
• Hardened epoxy enamel painted surface

Enhancements:

• 13'-4" or 17'-8" ceiling rails
• X-Y adapter with 6'-8" bridge rails
• Tray capacity: 34.5", 41" wide x 18" or
  21" high x 140#
• Bi-level tray capacity: 22.5" x 18" or 21"
  high x 140#
• Cable carrier kits
