IDI 2230 Monitor Suspension System

The IDI2230 provides flexibility for positioning up to four monitors during vascular lab applications. It features a fixed height, rotating swing arm. The dual-axis monitor mount is equipped with adjustable clutches for positioning ease. Motions are manually controlled. Cable is routed internally through the swing arm.

The mobile suspension includes the 8'-10" Easymount clip system, an Image Diagnostics innovation that reduces installation time and effort by eliminating the need for measuring and drilling. Clip-mounted rails eliminate the need for measuring and drilling, reducing installation
time and effort. The IDI2230 is easily integrated to existing systems.

Enhancements include: extended length ceiling rails, X-Y bridge systems, cable carrier kits, and various size monitor mounts. Motorized variable height suspensions
are available.

Package Includes:

• Anodized aluminum ceiling rails (8'-10'') with Easymount clip systems
• Mobile gantry
• Fixed height swing arm with 32" sweep radius; and±180° rotation
• Dual-axis monitor mount with ±10° tilt and ±180° rotation

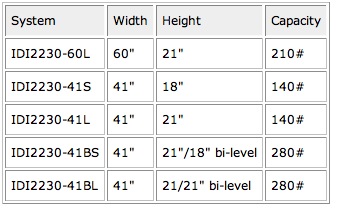

• Tray capacity: 60" wide x 21" high x 210#
• Hardened epoxy enamel painted surface

Enhancements:

• 13'-4" or 17'-8" ceiling rails
• X-Y adapter with 6'-8" bridge rails
• Tray capacity: 41" wide x 140#
• Bi-level tray capacity: 41" wide x 280#
• Cable carrier kits
