ID I3300 Monitor Suspension System

The IDI3300 is engineered for maximum viewing and positioning ease for up to six monitors during cardio-vascular lab applications. It features a rotating swing arm with motorized vertical travel, controlled by a remote pendant. Cable routing from gantry to monitor is internal. The IDI3300 rotating monitor mount has an optional readout bracket. The open-ended tray design enhances monitor capacity options.

The mobile suspension includes the 8'-10" Easymount clip system, an Image Diagnostics innovation that reduces installation time and effort by eliminating the need for measuring and drilling. The IDI3300 is easily integrated into existing systems.

Enhancements include: bi-level monitor mounts, extended length ceiling rails, X-Y bridge systems and cable carrier kits.

Package Includes:

• Anodized aluminum ceiling rails (8'-10'') with Easymount clip system
• Mobile gantry
• Swing arm: 44" sweep radius; ±180° rotation
• 19.5" motorized vertical travel with remote control
• ±130° rotating monitor mount
• Tray capacity: 60" wide x 210#
• Readout bracket
• Hardened epoxy enamel painted surface

Enhancements:

• 4" or 17' - 8" ceiling rails
• X-Y rail adapter with 6' - 8" bridge rails

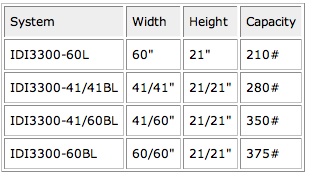

• Bi-level tray capacity: 41"/41" wide x 280#, 41"/60" wide x 350#, 60"/60" wide x 375#
• Cable carrier kits
