Our most advanced imaging table delivers extended positioning and imaging capabilities:
• 4-Way Floating Tabletop
• Isocentric Lateral Tilt ("Iso-Roll") (Patent Pending)
• Trendelenburg Tilt ( ±12°)
• Motorized Elevation
*Patent pending

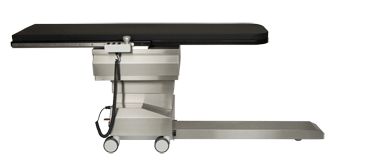

32" (81 cm) longitudinal float! Allows table panning to facilitate imaging over very large anatomical area without
C-arm repositioning.
Tabletop Specifications:
- Cantilevered, carbon fiber tabletop with low x-ray attenuation
- Tabletop size: 24” x 84” (61 x 213 cm)
- Imaging area on main table body: 61” (157.5 cm)
Table movements:
- Motorized Elevation: 33” – 43” (84-109 cm)
- Trendelenburg Tilt: ±12° with "stop-at-level" positioning
- 4-way manual floating tabletop with panning hand control
- Longitudinal tabletop travel: 32” (81.3 cm
- Transverse tabletop travel: 8” (20.3 cm)
- Multi-caster/3 position multi-lock system: total lock, total unlock and steering lock through center casters
Weight:
- Patient weight capacity: 450 lbs. (204 kg)
- Table weight: 605 lbs. (274 kg)
Electrical:
- 120 VAC or 230 VAC operation (must specify on order)
- Battery back-up operation
Accessories included:
- Tabletop Pad
- Patient Restraint Straps
|
12° Iso-roll
(Patent Pending)
Patient anatomy rotates about an axis
~5" above the table top
|
